Material System 01

材料体系 01

PPR Polypropylene Random Copolymer无规共聚聚丙烯

PPR pipes are the gold standard for hot and cold water distribution in residential, commercial, and institutional buildings. BoXin PPR pipes are manufactured from premium-grade raw materials to PN20 and PN25 pressure ratings, offering exceptional thermal resistance, smooth inner walls, and leak-free fusion joints.

PPR 管是住宅、商业及公共建筑冷热水配送的行业标杆。博鑫 PPR 管材采用优质原料生产，符合 PN20 及 PN25 压力等级，耐热性能卓越、内壁光滑、熔接接头密封可靠。

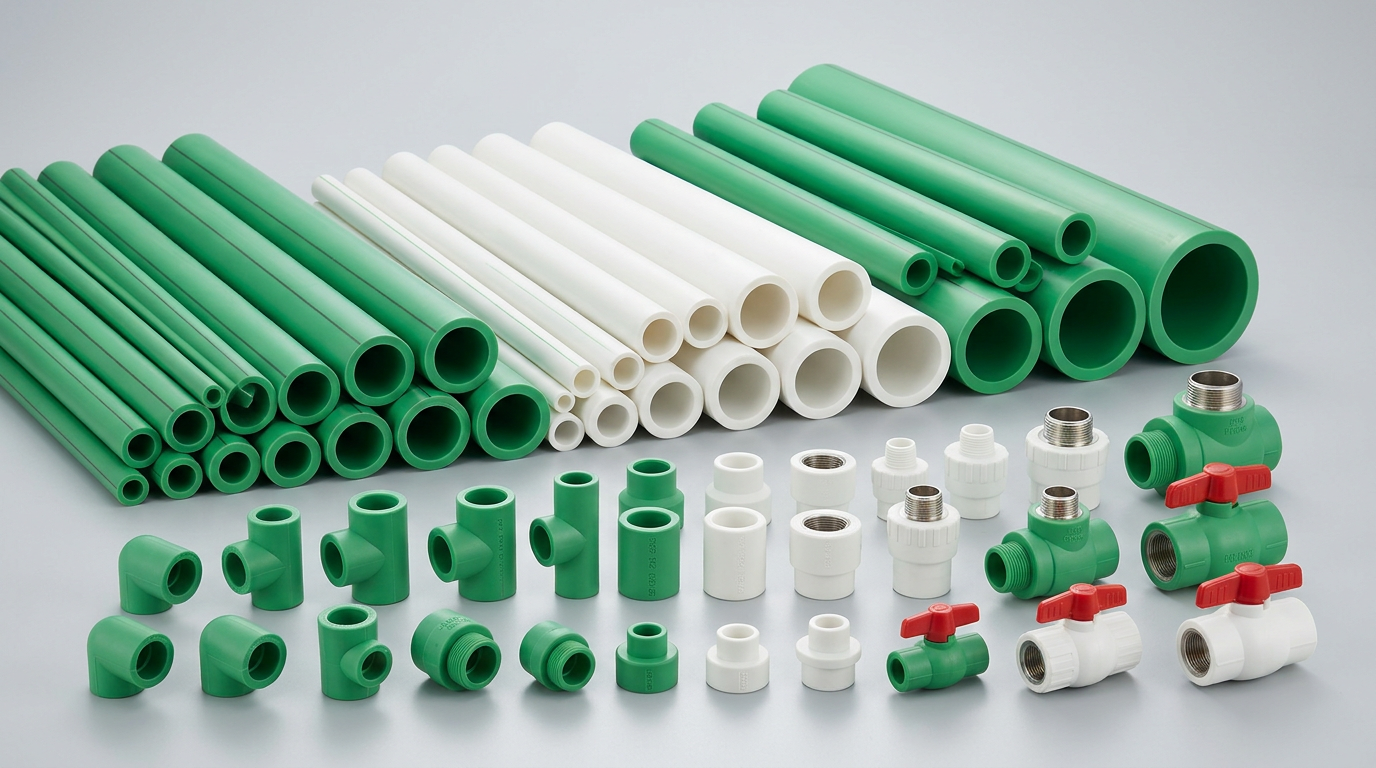

PPR给水管及管件 PPR Water Supply Pipe & Fittings

Premium-grade PP-R Type 3 pipes for hot and cold water systems. Heat-resistant up to 95°C. Available in PN20 (S4 series) and PN25 (S3.2 series) pressure ratings. Fusion-welded joints ensure zero-leak performance.

PP-R 3型优质管材，适用于冷热水系统，最高耐温95°C。可选 PN20（S4系列）和 PN25（S3.2系列）压力等级，热熔接头确保零渗漏。

Diameters管径范围 20mm — 160mm

Pressure Ratings压力等级 PN20 / PN25

Max Temp最高温度 95°C

Applications应用领域 Residential / Commercial / Industrial water 住宅 / 商业 / 工业给水

View Details查看详情

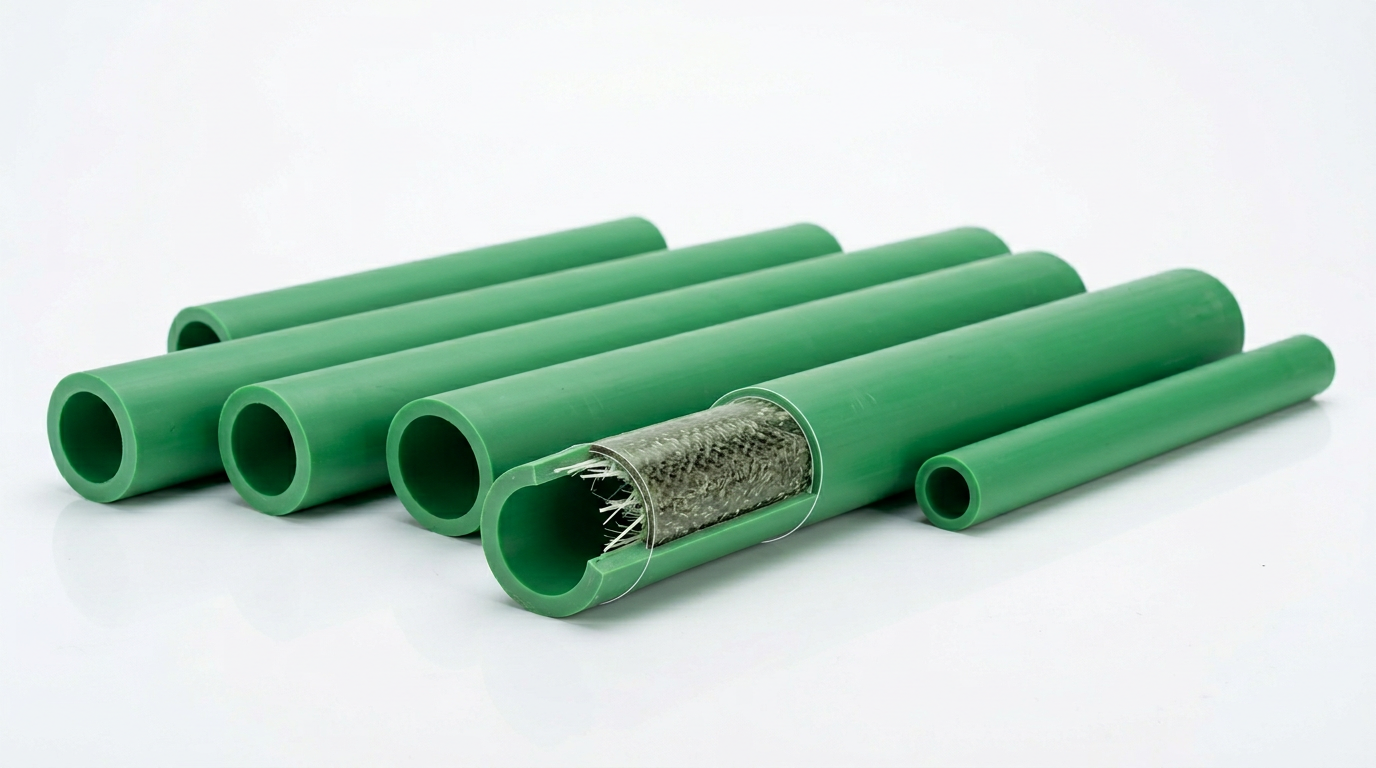

PPR 玻璃纤维复合管 PPR-GF Pipe (Glass Fiber Reinforced)

Glass fiber-reinforced PPR composite pipe with reduced thermal expansion and improved pressure resistance. The middle glass fiber layer minimizes expansion under hot water flow, making it ideal for concealed installation in walls and floors.

内嵌玻璃纤维增强层，显著降低热膨胀系数、提升耐压性能。中层玻纤结构减少热水流动时的膨胀量，特别适合墙内及地板暗敷安装。

Diameters管径范围 20mm — 110mm

Pressure Ratings压力等级 PN20 / PN25

Expansion Rate膨胀率 Reduced by 70% vs standard PPR 较普通 PPR 降低 70%

View Details查看详情

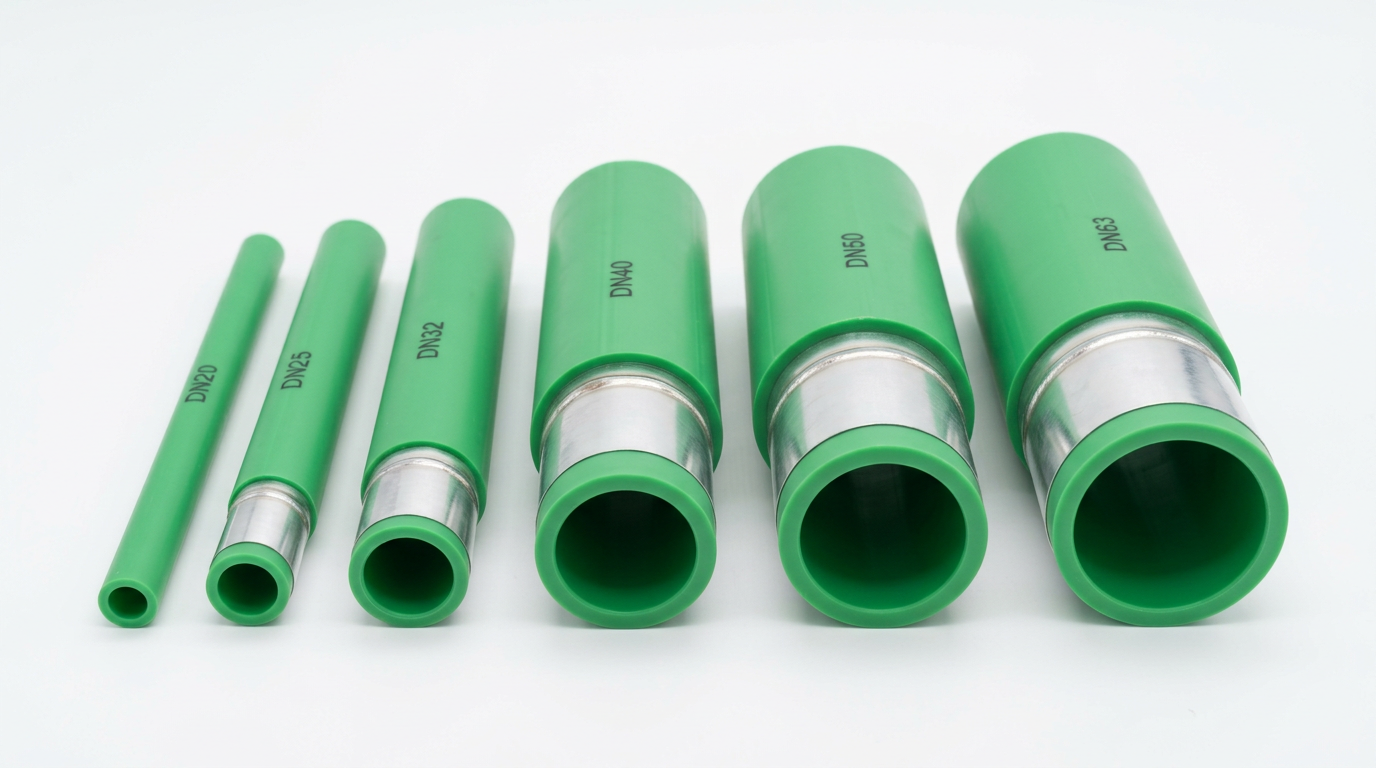

PPR 铝塑稳态管 PPR-AL-PPR稳态管

Aluminum-strip composite pipe combining PPR inner/outer layers with a welded aluminum mid-layer. Provides the lowest thermal expansion of all PPR variants, superior oxygen barrier, and exceptional dimensional stability for long-run exposed installations.

铝带复合管，内层外层为 PPR，中间层为焊接铝带。各 PPR 变体中热膨胀系数最低，氧阻隔性能卓越，尺寸稳定性极佳，适合长距离明装工程。

Diameters管径范围 20mm — 63mm

Pressure Ratings压力等级 PN25

Expansion Rate膨胀率 Near-zero thermal expansion 近乎零热膨胀

View Details查看详情

Material System 02

材料体系 02

PE Polyethylene聚乙烯

PE pipes — available in PE80 and PE100 grades — serve municipal water supply networks, industrial fluid transfer, and agricultural irrigation. BoXin PE pipes offer outstanding flexibility, impact resistance, and leak-free electro-fusion or butt-fusion joints.

PE 管提供 PE80 和 PE100 两种规格，服务于市政供水管网、工业流体输送及农业灌溉。博鑫 PE 管材柔韧性优异、抗冲击性强，电熔或对接熔接接头密封可靠。

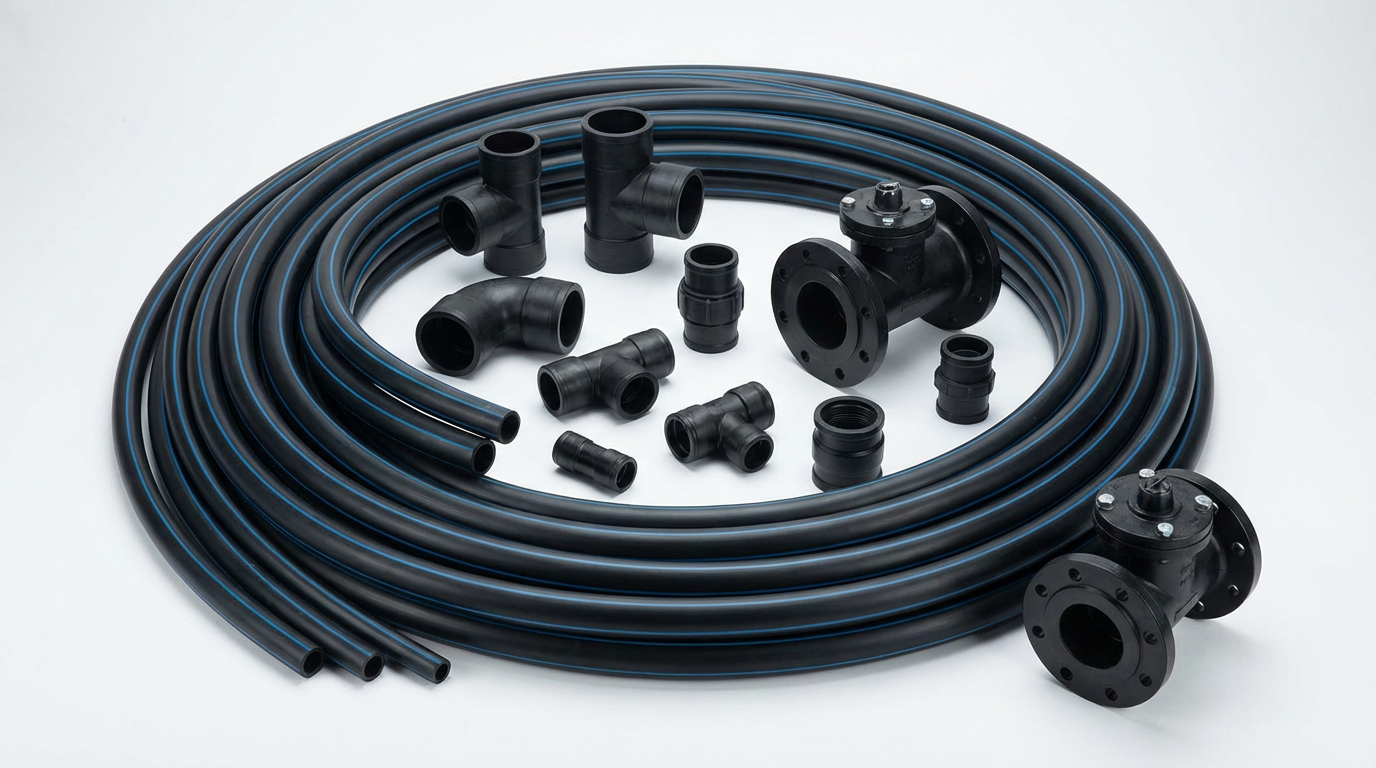

PE 给水管及管件 PE Water Supply Pipe & Fittings

PE80 and PE100 pipes for municipal water networks, industrial water transfer, and irrigation systems. SDR11 and SDR17 series available. Compatible with electro-fusion, butt-fusion, and mechanical compression fittings.

PE80 和 PE100 管材，适用于市政供水管网、工业输水及灌溉系统。可选 SDR11 和 SDR17 系列，配套电熔、对接熔接及机械压缩管件。

Diameters管径范围 20mm — 1200mm

Material Grades材料等级 PE80 / PE100

SDR SeriesSDR 系列 SDR11 / SDR13.6 / SDR17 / SDR21

Applications应用领域 Municipal / Irrigation / Industrial 市政 / 灌溉 / 工业

View Details查看详情

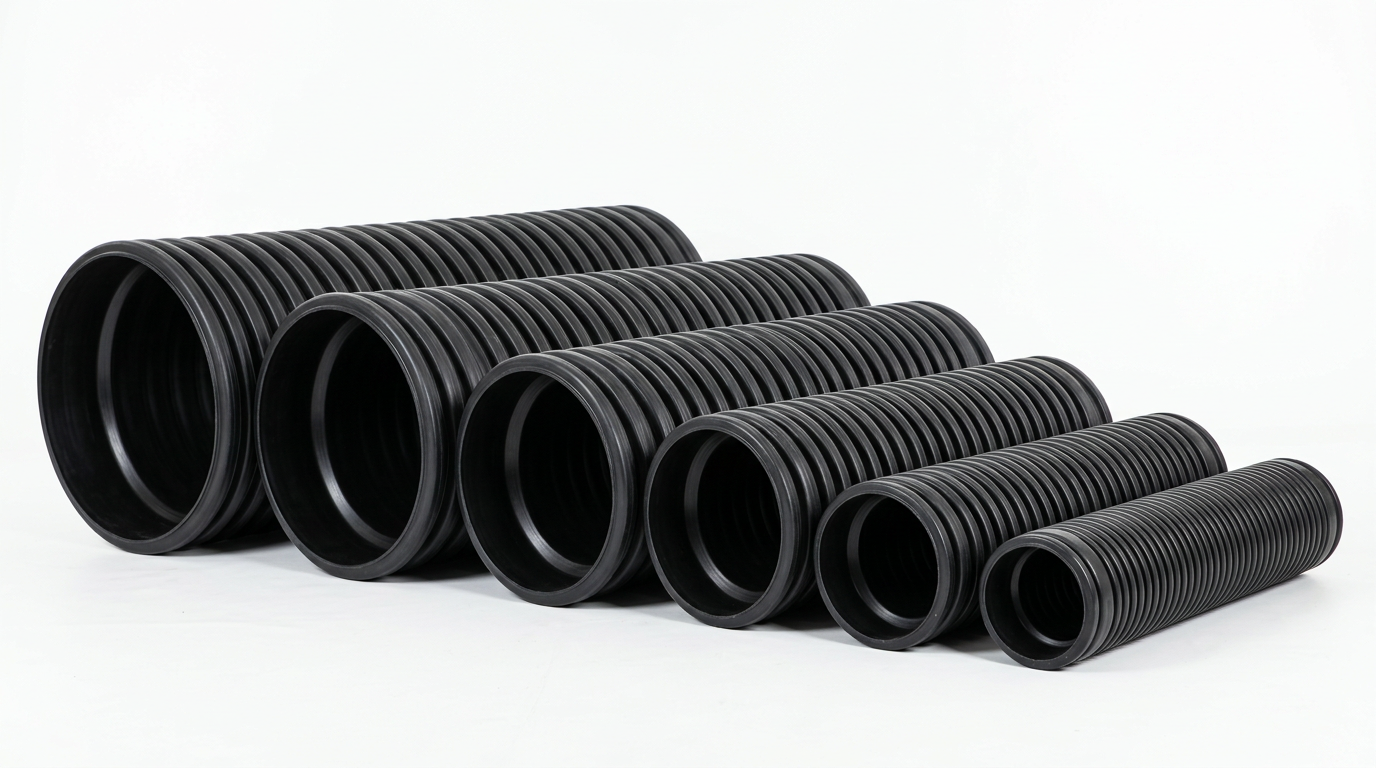

HDPE 双壁波纹管 HDPE Double-Wall Corrugated Pipe

High-density polyethylene double-wall corrugated pipe for municipal drainage and sewage systems. The corrugated outer wall provides superior ring stiffness while the smooth inner wall minimizes flow resistance. Available in SN4 and SN8 stiffness classes.

高密度聚乙烯双壁波纹管，适用于市政排水及污水系统。外壁波纹结构提供卓越环刚度，内壁光滑降低流阻。可选 SN4 和 SN8 刚度等级。

Diameters管径范围 DN200 — DN1200mm

Stiffness Classes刚度等级 SN4 / SN8

Length标准长度 6m / 9m / 12m

View Details查看详情

Material System 03

材料体系 03

PVC-U Unplasticized Polyvinyl Chloride无增塑聚氯乙烯 — 排水

PVC-U drainage pipes are the industry standard for gravity-flow building drainage. BoXin offers the full range — from standard pipes to high-performance silent pipes — covering all residential, commercial, and industrial drainage needs.

PVC-U 排水管是建筑重力流排水的行业标准。博鑫提供全系列产品线——从标准管到高性能消音管——覆盖住宅、商业及工业全场景排水需求。

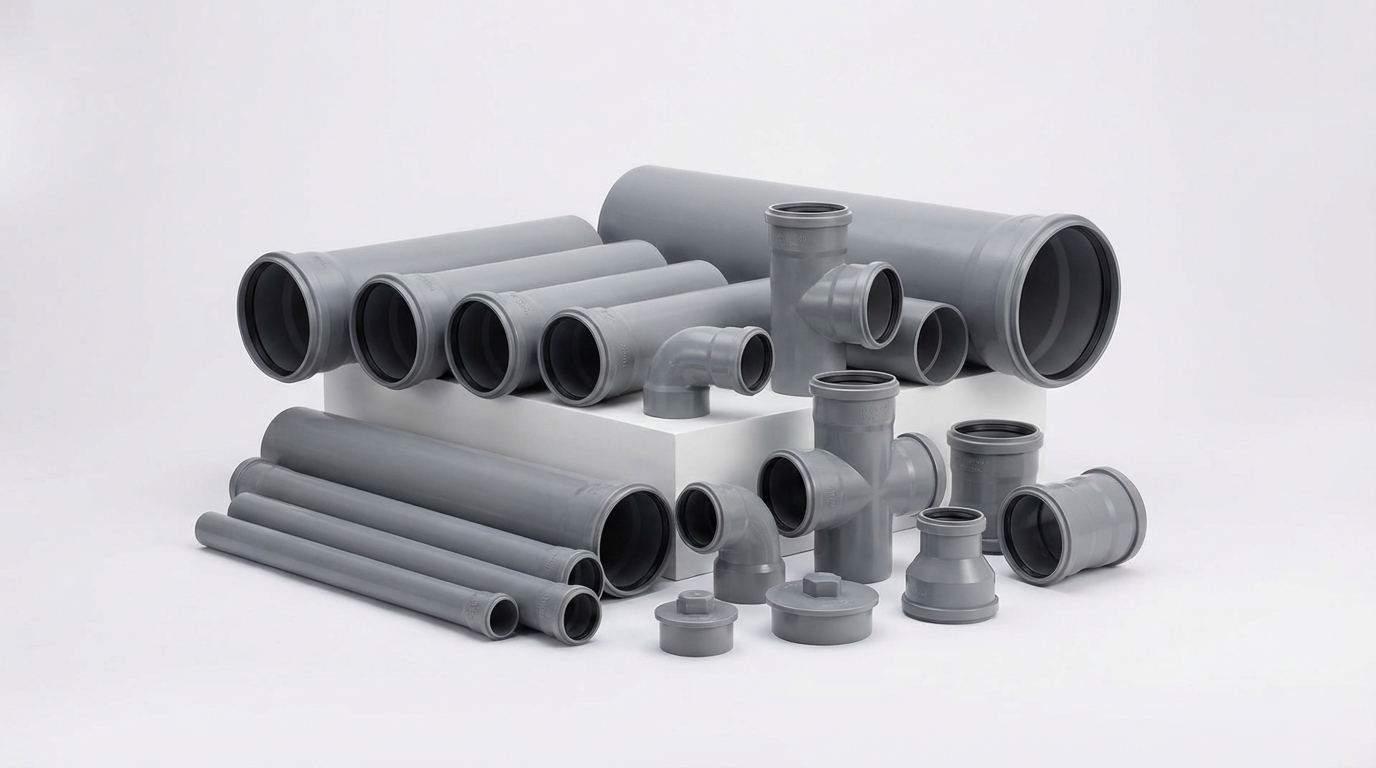

PVC-U 排水管及管件 PVC-U Drainage Pipe & Fittings

Standard gravity-flow PVC-U pipes and fittings for building sanitary, rainwater, and industrial wastewater drainage. Lightweight, corrosion-resistant, and designed for solvent-weld or ring-seal assembly.

标准重力流 PVC-U 排水管及管件，适用于建筑卫生排水、雨水排放及工业废水排放。重量轻、耐腐蚀，采用溶剂粘接或胶圈承插连接。

Diameters管径范围 DN32 — DN400

Standards执行标准 GB/T 5836 / ISO 3633

Joint Type连接方式 Solvent-weld / Ring-seal 溶剂粘接 / 胶圈承插

View Details查看详情

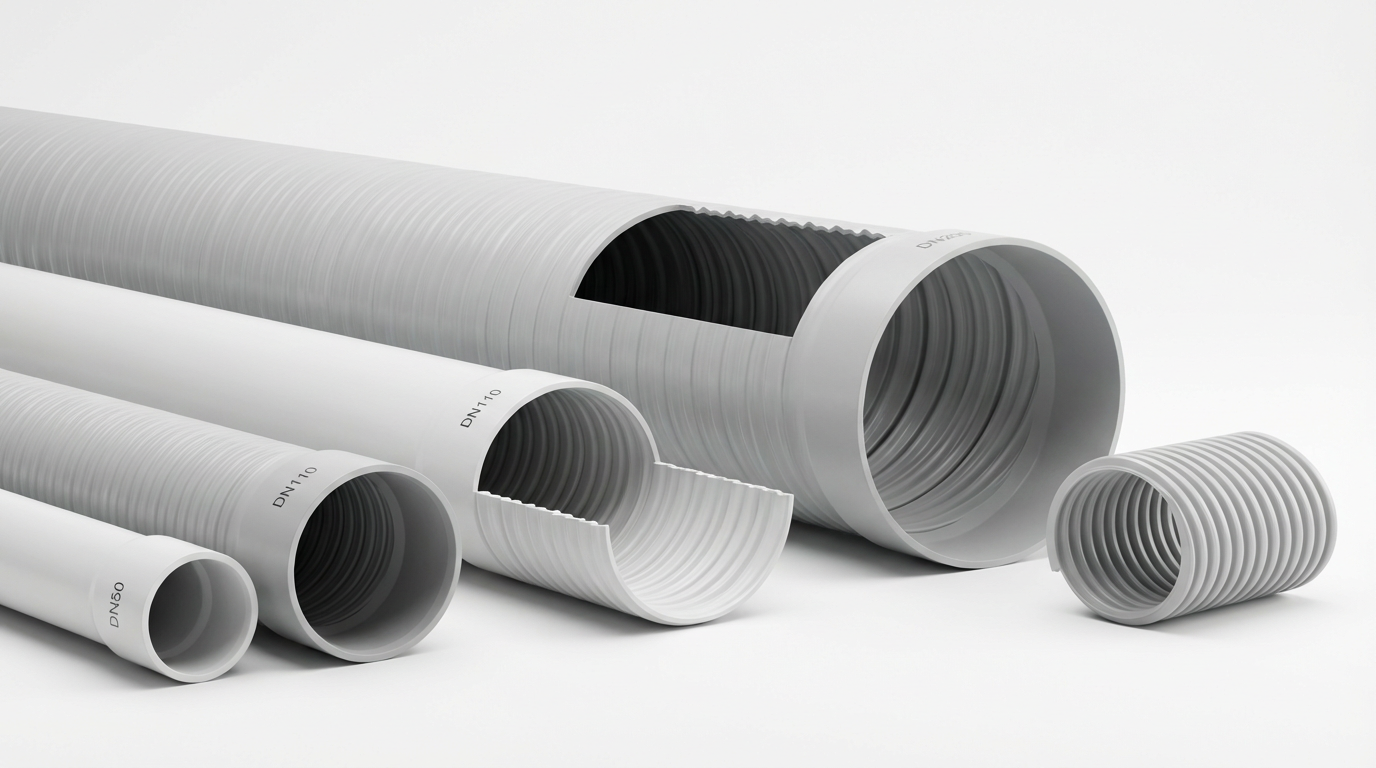

螺旋消音管 Spiral Silent Drainage Pipe

High-performance spiral-profile silent drainage pipe that dramatically reduces noise from water flow. The internal spiral ribs break up sound waves inside the pipe. Essential for high-rise residential buildings, hotels, and hospitals.

高性能螺旋消音排水管，显著降低水流噪音。管内螺旋肋条打断声波传递，是高层住宅、酒店及医院建筑的必备产品。

Diameters管径范围 DN50 — DN200

Noise Reduction降噪效果 Up to 20dB reduction vs standard 较标准管降低最高 20dB

Wall Structure壁结构 Spiral ribbed wall 螺旋肋纹壁

View Details查看详情

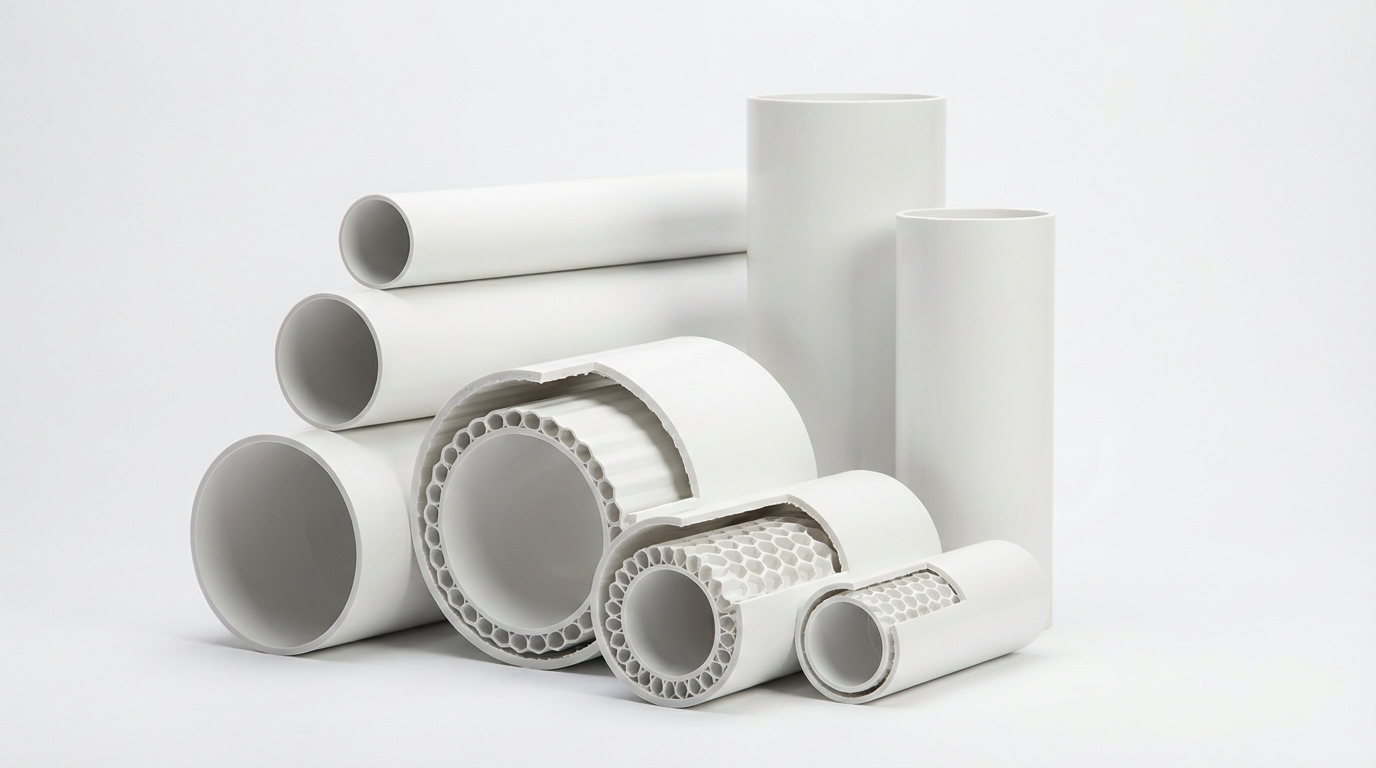

中空螺旋消音管 Hollow-Wall Silent Drainage Pipe

Three-wall co-extruded hollow-wall silent pipe with superior acoustic insulation. The hollow middle layer absorbs sound waves, achieving even lower noise levels than spiral pipes. Ideal for premium residential and hospitality projects.

三层共挤中空螺旋消音管，隔音性能更胜一筹。中空夹层吸收声波，降噪效果优于螺旋消音管，适合高端住宅及酒店项目。

Diameters管径范围 DN50 — DN160

Noise Reduction降噪效果 Up to 25dB reduction vs standard 较标准管降低最高 25dB

Wall Structure壁结构 Three-wall co-extruded hollow 三层共挤中空壁

View Details查看详情

Material System 04

材料体系 04

PE-RT Raised Temperature Resistance Polyethylene耐高温聚乙烯 — 地暖

PE-RT pipes are purpose-built for underfloor heating — one of the most efficient and comfortable space heating methods. BoXin Type II PE-RT pipes offer excellent thermal conductivity, long-term temperature cycling resistance, and superior flexibility for serpentine installation.

PE-RT 管专为地暖系统设计——目前最节能、最舒适的采暖方式之一。博鑫 II 型 PE-RT 管材导热性能优异，耐长期温度循环，柔韧性卓越，便于蛇形布管安装。

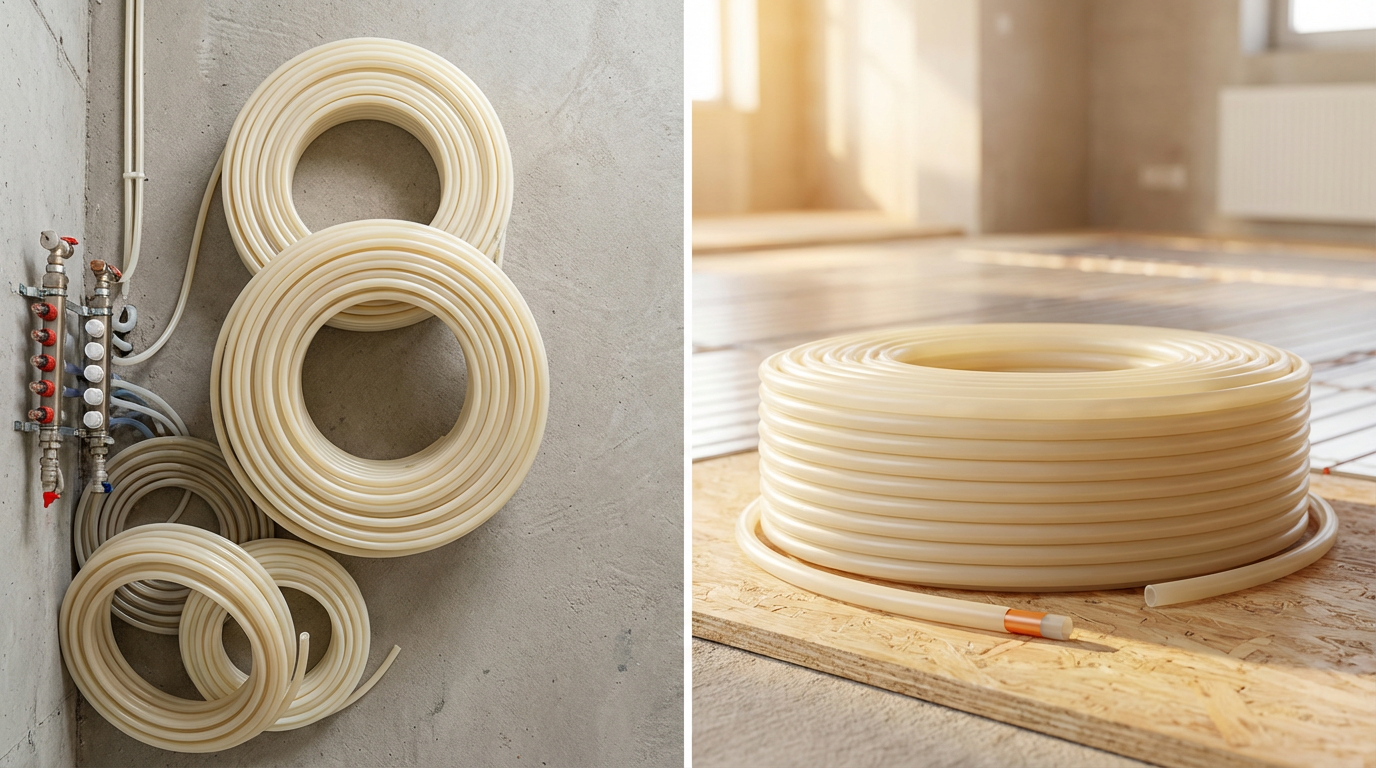

PE-RT 地暖管 PE-RT Floor Heating Pipe

Type II PE-RT pipe for underfloor heating systems in homes, hotels, hospitals, and schools. Excellent oxygen-barrier properties prevent corrosion in closed-loop heating systems. Compatible with standard manifold and clip systems.

II 型 PE-RT 管，适用于住宅、酒店、医院、学校地暖系统。氧阻隔性能出色，防止闭式循环供暖系统腐蚀。兼容标准分集水器及卡钉安装系统。

Diameters管径范围 16mm — 32mm

Type规格类型 PE-RT Type II

Max Operating Temp最高工作温度 60°C (short-term 80°C)

Standard Length标准长度 200m / 300m coils 200米 / 300米盘卷

View Details查看详情

Material System 05

材料体系 05

PVC Electrical Conduit System电工套管系统

A complete range of PVC electrical conduits, trunking, and junction boxes for safe indoor wire protection. BoXin products ensure excellent electrical insulation, mechanical strength, and moisture resistance across all building types.

完整的 PVC 电工套管、线槽及线盒产品线，为室内电线提供安全保护。博鑫产品确保优异的电气绝缘性、机械强度及耐潮湿性能，覆盖各类建筑类型。

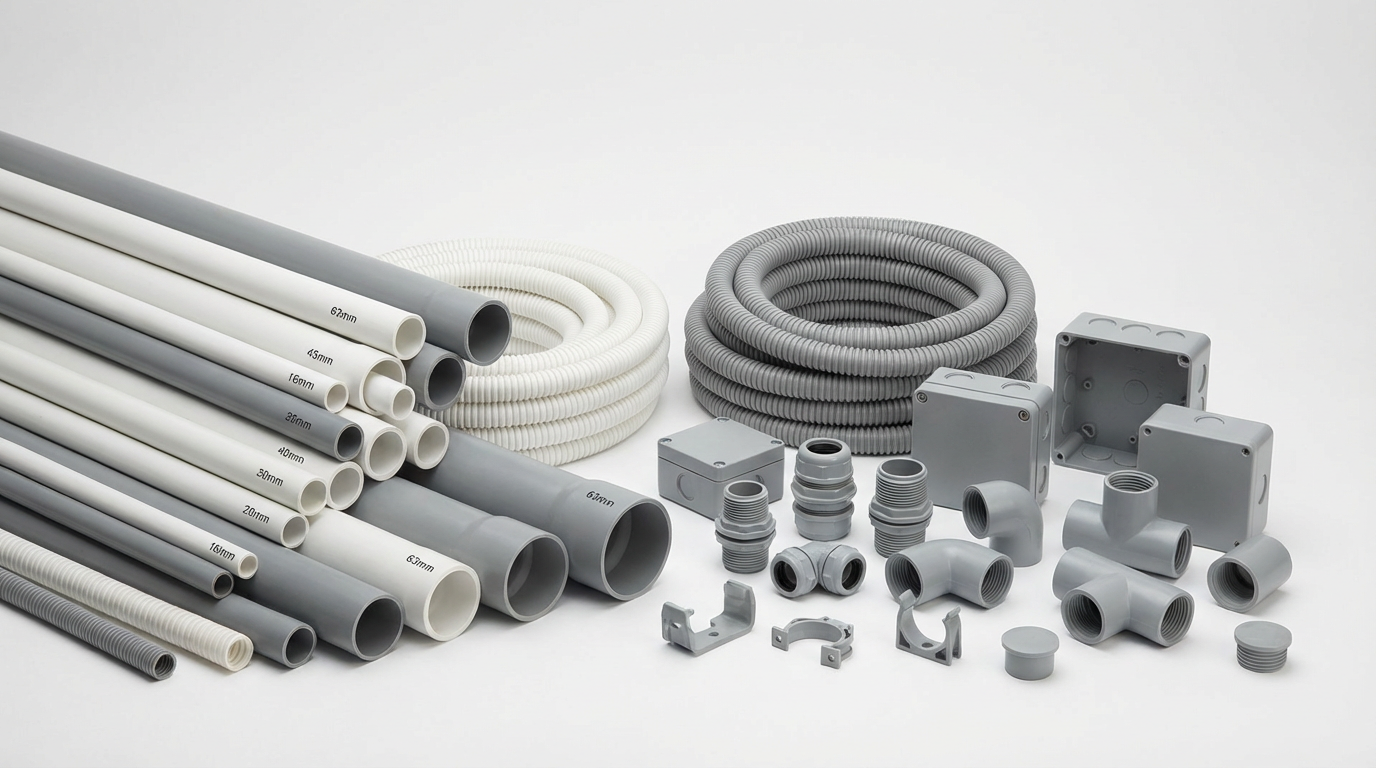

PVC 电工套管 PVC Electrical Conduit

Rigid and flexible PVC conduits for residential, commercial, and industrial electrical installations. Available in light-duty, medium-duty, and heavy-duty series. UV-resistant grades available for outdoor applications.

刚性及柔性 PVC 电工套管，适用于住宅、商业及工业电气安装。可选轻型、中型、重型系列，户外应用可提供抗紫外线规格。

Diameters管径范围 Φ16 — Φ63mm

Series系列 Light / Medium / Heavy 轻型 / 中型 / 重型

Standard执行标准 GB/T 14823 / JG/T 3050

View Details查看详情

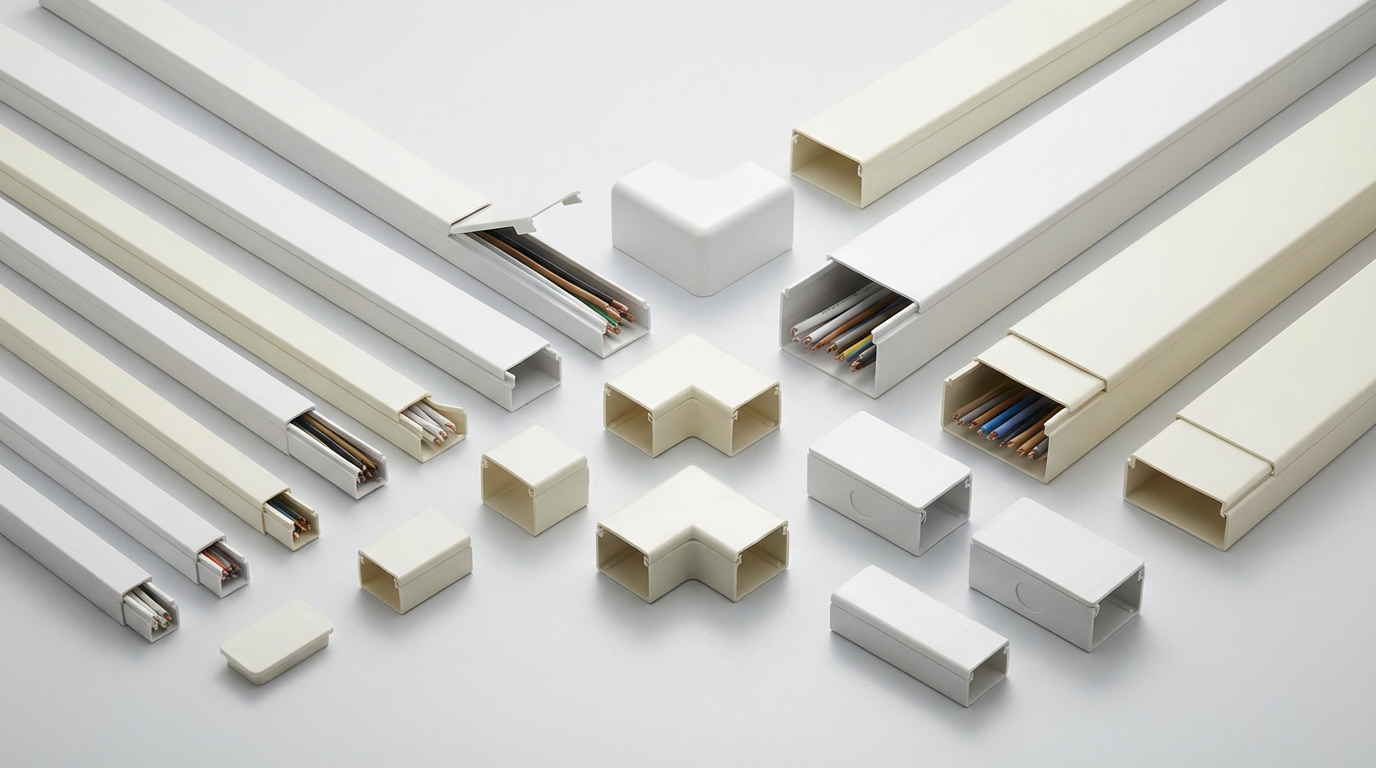

PVC 线槽及配件 PVC Trunking & Accessories

Complete PVC trunking (cable duct) systems for surface-mounted electrical wiring. Includes corner pieces, tees, junction boxes, and end caps. Available in various sizes and colors for different installation aesthetics.

完整 PVC 线槽系统，适用于明装电气布线。配套弯通、三通、线盒及终端封堵件。多种规格和颜色可选，满足不同安装美观需求。

Sizes规格 25×25mm to 100×50mm 25×25mm 至 100×50mm

Accessories配件 Corners / Tees / Boxes / End caps 弯通 / 三通 / 线盒 / 端堵

View Details查看详情
